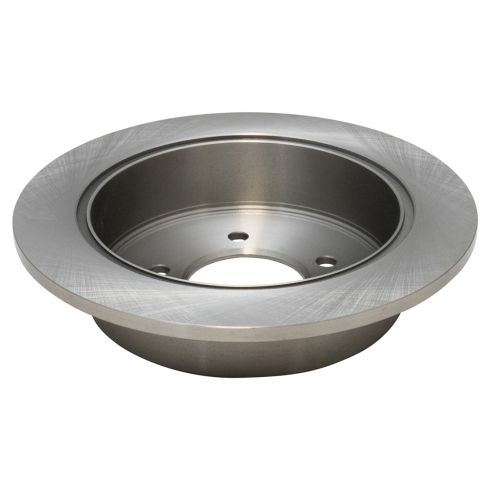

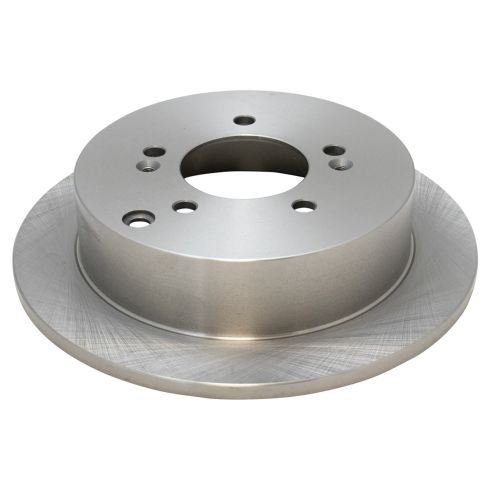

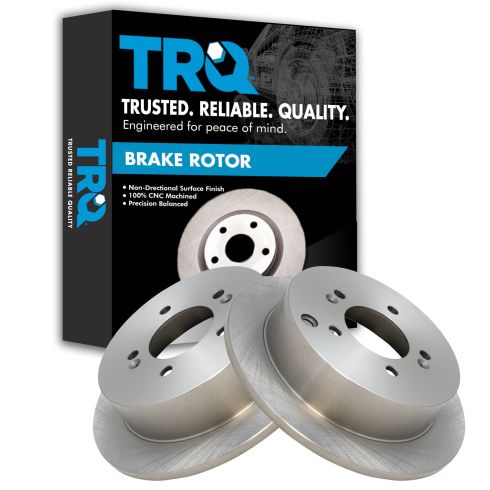

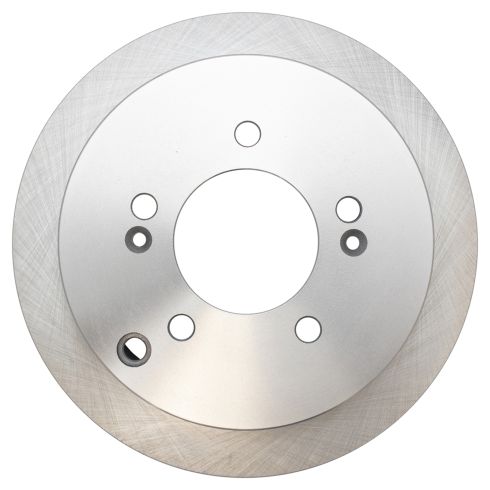

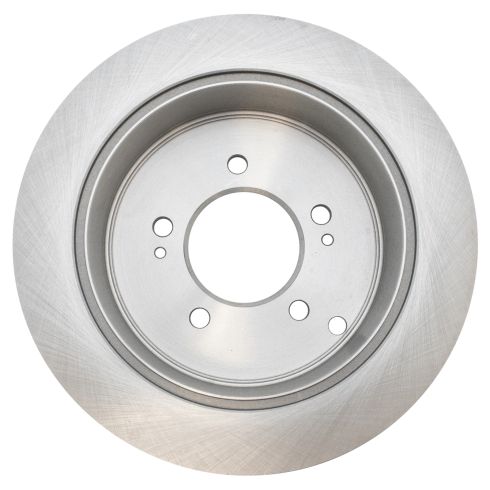

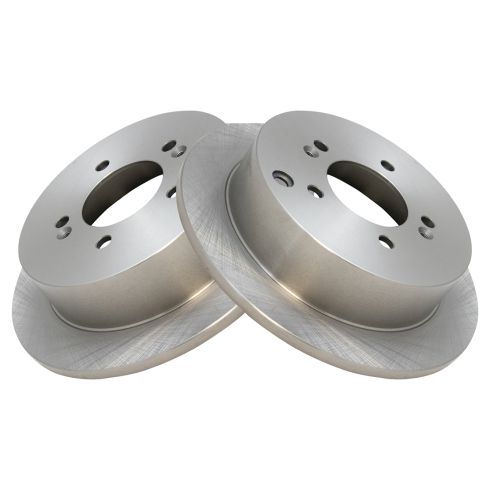

This brake rotors is intended for 2001-2006 Hyundai Santa Fe and 3 additional fitments. Review the fitment details before ordering.
- Brand: TRQ
- Manufacturer part number: BRA75483
- Catalog product code: 1ABFS03635
- Vehicle makes: Hyundai, Kia
- Vehicle models: Santa Fe, Tucson, Sportage
- Model years: 2001-2016
- Position: Rear, Driver Side, Passenger Side
Product details: Kit Includes: (1) Rear Passenger Side Brake Rotor (1) Rear Driver Side Brake Rotor Overall Height: 61 mm 2.4 in Mounting Bolt Hole Diameter: 13 mm 0.51 in Discard Thickness: 0.31 in 8 mm Solid Or Vented Type Rotor: Solid Brake Rotor Venting Type: Solid Quantity: 2 Piece Material: Cast Iron Center Hole Diameter: 76 mm 2.99 in Wheel Lug Count: 5 Lug Mounting Bolt Hole Circle Diameter: 4.49 in 114 mm Rust Resistant Coating: No Conventional Or Drum-In-Hat Type Rotor: Drum-In-Hat ABS Tone Ring Included: No Brake Rotor Diameter: 11.18 in. (284mm) Surface Type: Smooth Outside Diameter: 284 mm 11.18 in Stud/Lug Hole Quantity: 5 Nominal Thickness:…
Fitment can vary by trim, drivetrain, engine, production date, and installation position. Compare the product details with the part being replaced before purchase.
